1-3/8"OD Tank Fill Opening W/ 90° Hose Fitting For 1967-1972 C10 C20

$36.50
(2 reviews) Write a Review
Part #
FN15A
Condition:
New
Shipping:
Add to Cart For Quote
WARNING:
This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Handling Time:
Usually Ships Same Or Next Business Day
Total Height:
2.12" or AKA 2-1/8" Tall
UNDER BED GAS TANK RELOCATION FITTING FOR 1967-1972 c10  PICKUP AND MORE

Please See Details Below Before Ordering

This is the universal bolt on 90° Degree Gas Tank hose fitting that is commonly used on the Rear Tank conversions for the 1967 - 1972 Chevy / GMC C10, C20, C30 Pickups and Jimmy / Blazer.  Comes with a tight radius 90 to clear the bottom of the bed. Uses 1-3/8" Main Tube & 5/8" vent line to connect to the fill neck. We also stock backing rings and gaskets shown at the bottom of this page.  If you need a larger size we can expand it with a tubing expander. You can select a larger size from the drop down menu.

Bolt This Fitting On The Flat Part Of The Tank To Hook Up A 1-3/8" Hose For Remote Filling Metal Fuel Tanks. Will Not Restrict Flow When Vent is Used.

 Make and Model Notes

Universal When Meets Specs Required!

1967-1972 Chevy/GMC C20, C20, C30 Includes K Series.

1967-1972 Chevy/GMC Blazer / Jimmy

(These Vehicles With With METAL Rear Tank Conversion Only!) cannot be used with plastic tank kit that is floating around the internet.

Part# FNS15

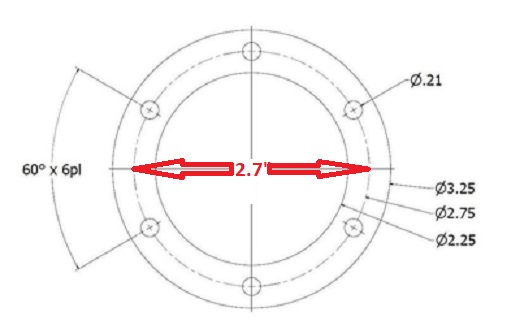

Bolt Pattern: 2.7" From Centers of Holes Straight Across
Hose Connection Pipe Outer Diameter: 1-3/8"
Vent Connection O.D.  5/8"
Flange Outer Diameter:  3.22" O.D.
Diameter Of Holes In Flange: 0.232"
Length Of large Pipe: 5" (From Back Of Vertical Tube)
Total Height Installed: 2.12" or AKA 2-1/8" Tall
Material: Black Coated Mild Steel.
Related And Recommended Products: Clicking Links Below Open Up A New Window
Threaded Mounting Retainer / Backing Ring 6 Hole: Part# 3TR (Click Here)
Gasket (Cork #3G Or Neoprene #3GN) Part# 3GN OR 3G (Click Here)
See Related Products At Bottom Of This Page:

diesel-gas-fuel-tank-relocation-under-bed-remote-fill-6-hole-mounting-flange-bolt-pattern-for-filler-neck-1967-1968-1969-1970-1971-1972-c10-c20-c30-k10-k20.jpg

1 YEAR

2 Reviews Hide Reviews Show Reviews

  • 5
    Fuel tank filler neck.

    Posted by Dan on Nov 19th 2020

    I received the item hen promised and it fit my fuel tank perfectly.

  • 5
    fantastic!

    Posted by jessi sherwood on Oct 21st 2020

    i was lkooking everywere for somthing like this for my c10 fuel tank relocation project and this one fit the bill
