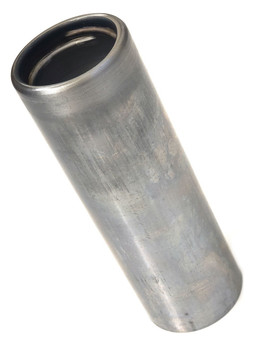

2.25" O.D. Diesel Filler Tube / Weld On Neck - 6.75" Tall - 2-1/4" OD

(1 review) Write a Review
Part #
Add to Cart For Quote
Threaded 2-1/4" Filler Neck  Available For Gasoline and Diesel Engine

Please See Details Below Before Ordering

This is a versatile weld On Diesel fill tube. Works great on custom fabricated oil, water, gas, diesel fuel tanks and surge tanks. comes in cold rolled steel. You can cut this down to you're length or cut at any angle, even weld in a bung for vent and return lines. You can also connect this remotely using 2-1/4" I.D. Hose & Clamp. You get a real great valve with this piece.
Mouth Type:  Wide Open = No Restrictions
Applications:   Diesel - Kerosene - Fuel - Hydraulic - Oil Ect.
Outside Diameter:   2.25" /or 2-1/4" 57mm
Inside Diameter @ Cap  1.7"
Inside Diameter @ Tube  2-1/8"
Max Outside Diameter:  2.28"
Height:   6.75" or 6-3/4"
Material:   18 Gauge Cold Rolled Steel.
Cap Type:    Uses standard Thread On SAEj1114 Rated Automotive Fuel Cap  Part# 31835D (Click Here)
Need A Cap?   See Rated Caps At The Bottom Of This Page!!
1 year warranty on workmanship and failure due to manufacturing error or defects,
